The Hidden Value in a Dead Power Tool
When an angle grinder dies, it usually goes out with a puff of acrid blue smoke. A burnt stator, a ruined armature, or shattered carbon brushes typically spell the end of the tool’s life.
Most users immediately toss the heavy machine into the trash or scrap metal bin. That is a costly mistake.

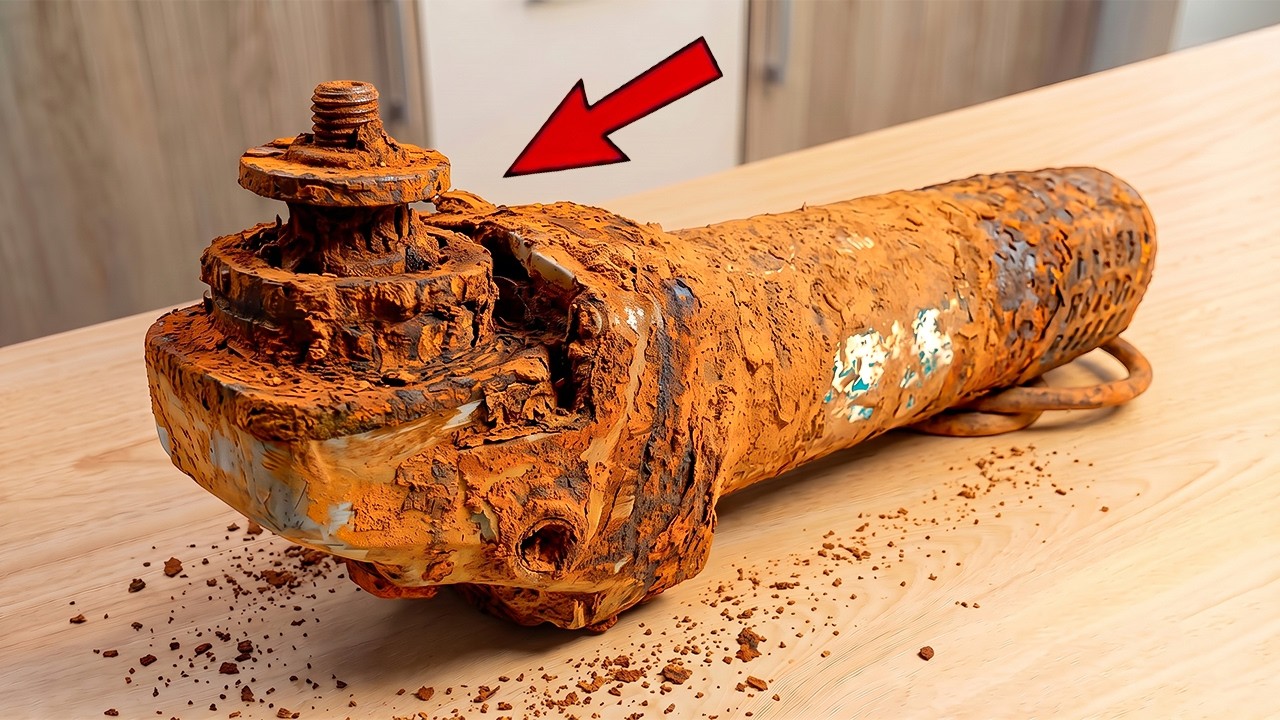

While the electric motor might be fried beyond economical repair, the front half of the tool—the heavy-duty cast aluminum gear head—is usually in perfect working order. This component is essentially a high-torque, right-angle gearbox that can be repurposed into completely new workshop equipment.
Why the Gearbox is an Engineering Goldmine
Angle grinder heads are built to withstand immense abuse. Inside that aluminum housing sits a precisely machined set of hardened steel bevel gears.
These gears are designed to redirect rotational force at a 90-degree angle while surviving speeds upward of 10,000 RPM. They are supported by heavy-duty ball bearings that absorb massive amounts of radial and axial load.
Furthermore, the output shaft features a standardized thread—typically 5/8″-11 in the United States. This means the salvaged head can still natively accept standard wire wheels, grinding discs, flap discs, and polishing pads.
Top Ways to Repurpose the Grinder Head
By salvaging this mechanical core, you skip the need to engineer a 90-degree drive system from scratch. Makers and fabricators use these heads to build high-value stationary tools.
Stationary Bench Sander: By coupling the input shaft of the grinder head to an old washing machine motor or induction motor, you can create a powerful benchtop disc sander. The 90-degree angle allows the motor to sit flat on a workbench while the sanding disc faces the operator.
Custom Polishing Station: You can mount the salvaged head vertically on a steel frame and attach a buffing wheel. Driven by a belt and a secondary motor, this creates a dedicated buffing station with massive torque.
Flexible Shaft Drive: Attaching the input gear to a flexible rotary shaft turns the heavy grinder head into a specialized remote-driven tool. This allows you to grind in extremely tight spaces without the bulk of the original electric motor getting in the way.
How to Extract and Prep the Mechanism
Removing the gear head takes only a few minutes. Four screws typically hold the aluminum housing to the plastic motor body.
Once you pull the head free, you will need to extract the pinion gear. This small gear is usually attached to the end of the burnt motor armature with a single nut. Secure the armature in a vise, remove the nut, and slide the pinion gear off.
Before building your new tool, the gearbox needs maintenance. Old angle grinders are notorious for housing dry, baked-on grease packed with metal shavings.
Scrape out the old lubricant and clean the gears thoroughly with a solvent like mineral spirits or brake cleaner. Once the metal is completely dry, repack the housing with fresh high-temperature lithium grease to ensure smooth, quiet operation in its next life.
Powering Your New Custom Tool
The biggest challenge in upcycling a grinder head is coupling a new power source to the pinion gear. The most effective method involves mounting the pinion gear onto a steel shaft that matches its internal diameter.
You can secure this shaft using a keyway, a set screw, or by carefully welding the gear to the shaft. From there, attach a standard V-belt pulley to the other end of the shaft.
With a pulley installed, the grinder head can be driven by virtually any spare electric motor you have in your shop. You have instantly turned a piece of e-waste into a custom, high-performance workshop machine.
